Développement de circuits imprimés pour machines à jus

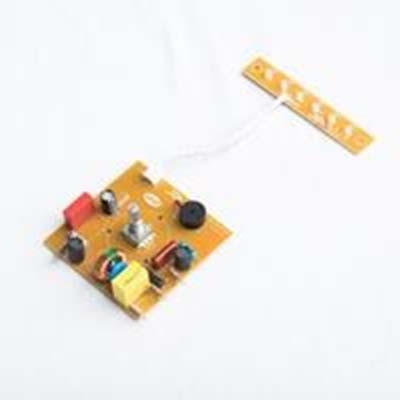

1. Le circuit imprimé de la machine à jus de la carte de commande de l'appareil ménager est contrôlé par MCU, qui a les fonctions de stockage et de jus multifonctionnel.La fonction de la carte de circuit imprimé sera expliquée en combinaison avec l'ensemble de la machine. Verre à cristaux liquides (le verre à cristaux liquides réel est en caractères anglais) et écran rétro-éclairé bleu.
2.14 boutons et 15 LED, sauf que le bouton "ON / OFF" a une LED rouge et blanche, et les autres boutons ont une LED blanche correspondante.
3. Le SCR sélectionne BTA24.
4. Tension nominale: AC110V 50 / 60Hz
5. Tension: 110V ± 20% 50 / 60Hz
6. Environnement de travail: 0 ～ 45 ℃ 95% d'humidité
7. Charge (machine entière): 1680W
8. Consommation électrique en état d'arrêt: <1W
Development of juicer circuit board
1. The Juicer circuit board of the household appliances control board is controlled by MCU, which has the functions of storage and multi-function juice. The following is a description of the circuit board function combined with the whole machine. LCD glass (actual LCD glass is English character) and blue backlight display.
2.14 keys and 15 LEDs, except "ON/OFF" keys have one red and one white LED, the other keys have one corresponding white LED.
3. BTA24 is selected for thyristor.
4. Rated voltage: AC110V 50/60Hz
5. Voltage: 110V + 20% 50/60Hz
6. Working environment: 95% humidity at 0-45 C
7. Load (whole machine): 1680W
8. Power consumption in shutdown state:<1W
