Airmate intelligent voice fan (using module: HX-LV1120-F)

Product Details

1. Support local voice wake-up recognition intelligent fan control within 3 meters;

2. Turn on the fan/turn off the fan/acceleration/deceleration/swing head/close the swing head intelligent fan control;

3. Voice wake word customization;

4. Provide I2C/UART interface and communication protocol, which can be used to expand Wi-Fi and Bluetooth modules and communicate with external MCU.

5. A total of 24 voices are supported, which is convenient for customers to make internationalized products.

Local voice smart light (using module: HX-LV1120-L)

Product Details

1. Support local voice wake-up recognition smart light control within 3 meters;

2. Turn on/off/brighter/darker/natural light/daylight/warm light/RGB voice control color adjustment;

3. Voice wake word customization;

4. Provide I2C/UART interface and communication protocol, which can be used to expand Wi-Fi and Bluetooth modules and communicate with external MCU.

5. A total of 24 voices are supported, which is convenient for customers to make internationalized products.

Filter element (using module: HX-N200-BT)

Product Details

Bluetooth filter anti-counterfeiting module HX-N200-BT

1. Label recognition distance: 0-25mm

2. Support the number of antennas at the same time: 4

3. Detectable: legal, illegal, and expired labels.

4. It can detect whether the filter element has a label.

5. Label security verification: local and fast

6. Check the filter information through the mobile phone Bluetooth connection module

Basic specifications

1. Interface:

  VCC: 5V

  UART/I2C: Command communication with host control board

2. Module size: 64.50mm X 36.3mm X 6.03mm

HX-N200-BT is a Bluetooth smart home filter anti-counterfeiting module independently developed by RF-SMART. It can support four antennas at the same time, support Bluetooth connection with mobile phones, and view filter information.

智能语音交互方案案例

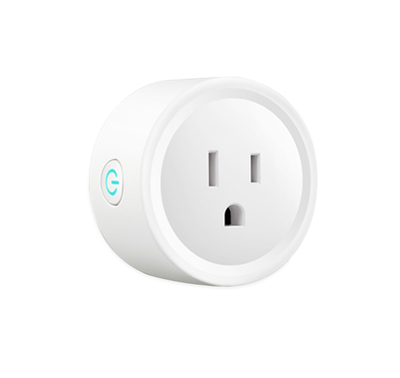

Smart socket (using module: Reltek 8710/8711)

Product Details

Plan: Reltek 8710/8711

Application areas: smart sockets, sweeping robots, light control, etc.

Intelligent voice interactive music light (using module: RF-X1000)

Product Details:

Adopted module: RF-X1000

1. Support voice wake-up function (such as: "Hello Xiaohui");

2. Support 0~3 meters long-distance recognition;

3. Built-in rich content such as Himalaya FM, Internet radio, and Ali music;

4. Support online functions (greetings/encyclopedias/jokes/story/math operations/poems and other content) can be customized;

5. Support intelligent reminder, voice on demand (such as cross talk, storytelling, Baijia forum), voice query weather/date and other functions;

6. Support SmartConfig, AirKiss one-key configuration;

7. Support wireless multi-room system, support playing different songs to the music lights at the same time;

8. Support DLNA / AirPlay / QPlay push protocol;

9. Realize RGB intelligent dimming through the intelligent control system, and support multiple lighting modes such as melody dancing and natural wake-up;

Smart curtain (using module: HX-V210)

Product Details

Adopted module: RM09D

1. Voice recognition distance: 0-5 meters

2. Maximum number of command entries: 20

3. 20dB noise reduction

4. The module can drive 8 ohms 1 watt speakers with 88% efficiency

5. 1 LED wake-up indicator, support breathing light.

6. Provide I2C communication protocol to communicate with the main control of home appliances.

7. BLE function, which can be used to customize feedback tone and collect product usage data and alarm information

8. Provide cloud services and APP customization services

HX-V210 module interface:

VCC: 3.3V

I2C: Command communication with host control board

SPK: Feedback voice speaker interface

Smart teapot (using module: HX-V210)

Product Details

Adopted module: RM09D

1. Voice recognition distance: 0-5 meters

2. Maximum number of command entries: 20

3. 20dB noise reduction

4. The module can drive 8 ohms 1 watt speakers with 88% efficiency

5. 1 LED wake-up indicator, support breathing light.

6. Provide I2C communication protocol to communicate with home appliance master.

7. BLE function, which can be used to customize feedback tone and collect product usage data and alarm information

8. Provide cloud services and APP customization services

HX-V210 module interface:

VCC: 3.3V

I2C: Command communication with host control board

SPK: Feedback voice speaker interface

MIC: Analog MIC interface

LED: Wake-up indicator interface

Wi-Fi audio converter (using module: RM09D)

Product Details

Adopted module: RM09D

1. Support remote operation timing switch function;

2. AC Input: 100-250V, AC Output: 100-250V;

3. Audio interface: AUX IN, Line Out (3.5mm)

4. The system supports two working modes: STA and AP;

5. Support SmartConfig, AirKiss one-key configuration;

6. Support DLNA / AirPlay / QPlay push protocol;

7. Support wireless multi-room system Multi-Room*;

8. Support voice operation prompt function;

9. Music format MP3, WMA, WAV, AAC, APE, FLAC;

Emmett Intelligent Speech Fan (HX-LV1120-F)

product details

1. Support local voice wake-up recognition intelligent fan control within 3 meters;

2. Intelligent Fan Control with Open Fan/Close Fan/Acceleration/Deceleration/Shake Head/Shut Head;

3. Voice wake-up word customization;

4. Provide I2C/UART interface and communication protocol, which can be used to extend Wi-Fi and Bluetooth module and communicate with external MCU.

5. A total of 24 voices are supported to facilitate customers to produce international products.

Local Voice Intelligent Lamp (Module: HX-LV1120-L)

product details

1. Supporting local voice wake-up recognition intelligent light control within about 3 meters;

2. Turn on/off/turn on/turn on/turn on/dim/natural/sunlight/warm/RGB voice control toner;

3. Voice wake-up word customization;

4. Provide I2C/UART interface and communication protocol, which can be used to extend Wi-Fi and Bluetooth module and communicate with external MCU.

5. A total of 24 voices are supported to facilitate customers to produce international products.

Filter element (using module: HX-N200-BT)

product details

Bluetooth filter anti-counterfeiting module HX-N200-BT

1. Tag recognition distance: 0-25mm

2. Number of simultaneous supporting antennas: 4

3. Detectable: legal, illegal, expired labels.

4. It can detect whether the filter element has a label or not.

5. Label Safety Check: Local, Fast

6. View filter information through Bluetooth connection module of mobile phone

Basic specification

1. interface:

VCC:5V

UART/I2C: Communication with Host Control Board Command

2. Module size: 64.50mm X 36.3mm X 6.03mm

HX-N200-BT is a Bluetooth smart home filter anti-counterfeiting module developed by RF-SMART. It can support four antennas at the same time, support Bluetooth to connect mobile phones, and view filter information.

Intelligent socket (using module: Reltek 8710/8711)

product details

Programme: Reltek 8710/8711

Applications: Intelligent socket, floor sweeping robot, light control, etc.

Intelligent voice interactive music lamp (using module: RF-X1000)

Product details:

Module: RF-X1000

1. Support voice wake-up function (e.g. "Hello Xiaohui");

2. Supporting remote recognition of 0-3 meters;

3. Built-in Himalayan FM, network radio, Ali music and other rich content;

4. Support online functions (greetings/encyclopedias/jokes/stories/mathematical operations/poetry, etc.) can be customized;

5. Supporting intelligent reminders, voice on demand (such as cross talk, book reviews, hundreds of forums), voice query weather/date functions;

6. Support one-key configuration of SmartConfig and AirKiss;

7. Supporting wireless multi-room system, supporting simultaneous playback of different songs to music lights;

8. Support DLNA / AirPlay / QPlay push protocol;

9. Intelligent dimming of RGB can be realized by intelligent control system, which can support many lighting modes such as melody dance, natural wake-up and so on.

Intelligent curtain (using module: HX-V210)

product details

Using Module: RM09D

1. Speech Recognition Distance: 0-5 M

2. Maximum number of command terms: 20

3. 20dB Noise Reduction

4. The module can drive 8-oh-1-watt horn with 88% efficiency.

5, 1 LED wake-up indicator, support breathing lamp.

6. Provide I2C communication protocol and communicate with main control system of household appliances.

7. BLE function, which can be used to customize feedback sound and product usage data and alarm information collection

8. Providing cloud services and APP customization services

HX-V210 module interface:

VCC:3.3V

I2C: Communicate with host control board commands

SPK: Feedback Voice Horn Interface

Intelligent teapot (using module: HX-V210)

product details

Using Module: RM09D

1. Speech Recognition Distance: 0-5 M

2. Maximum number of command terms: 20

3. 20dB Noise Reduction

4. The module can drive 8-oh-1-watt horn with 88% efficiency.

5, 1 LED wake-up indicator, support breathing lamp.

6. Provide I2C communication protocol and communicate with main control system of household appliances.

7. BLE function, which can be used to customize feedback sound and product usage data and alarm information collection

8. Providing cloud services and APP customization services

HX-V210 module interface:

VCC:3.3V

I2C: Communicate with host control board commands

SPK: Feedback Voice Horn Interface

MIC: Analog MIC Interface

LED: Wake-up Indicator Interface

Wi-Fi Audio Converter (Module: RM09D)

product details

Using Module: RM09D

1. Supporting remote operation timing switch function;

2. AC Input: 100-250V, AC Output: 100-250V;

3. Audio interface: AUX IN, Line Out (3.5mm)

4. The system supports STA and AP working modes.

5. Support SmartConfig, AirKiss one-key configuration;

6. Support DLNA/AirPlay/QPlay push protocol;

7. Support wireless multi-room system multi-room*;

8. Support voice operation prompt function;

9. Music formats MP3, WMA, WAV, AAC, APE, FLAC;
