电子产品方案设计

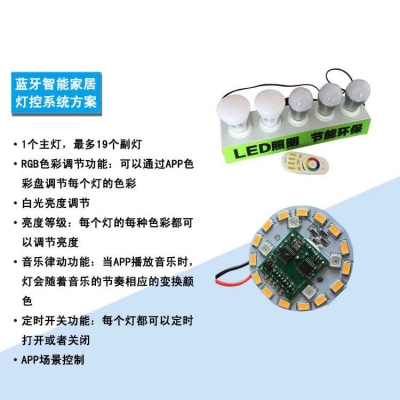

蓝牙智能家居灯控系统方案

方案参数：

1个主灯，最多19个副灯

RGB色彩调节功能：可以通过APP色

彩盘调节每个灯的色彩

白光亮度调节

亮度等级：每个灯的每种色彩都可

以调节亮度

音乐律动功能：当APP播放音乐时，

灯会随着音乐的节奏相应的变换颜

定时开关功能：每个灯都可以定时

打开或者关闭

APP炀景控制

Scheme Design of Electronic Products

Bluetooth Smart Home Lighting Control System

Scheme parameters:

1 main lamp, up to 19 sub-lamps

RGB color adjustment function: App color can be used

The colour disc adjusts the colour of each lamp.

White Light Brightness Adjustment

Brightness Level: Every color of each lamp is acceptable.

To adjust brightness

Music Rhythm Function: When APP plays music,

The lantern will change with the rhythm of music.

Timing switch function: each lamp can be timed

Open or close

APP Yangjing Control
