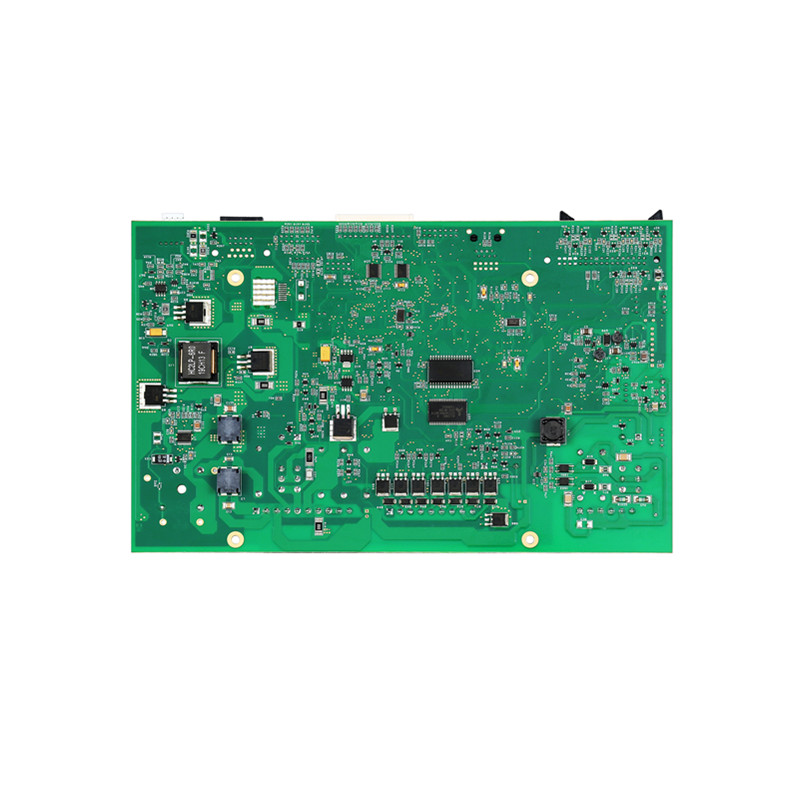

Customized printing circuit board design pcb design One-stop Service manufacturer

PCB Techinecal CapacityLayersMass production: 2~58 layers / Pilot run: 64 layersMax. ThicknessMass production: 394mil (10mm) / Pilot run: 17.5mmMaterialFR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead f

  • Model: Customized printing circuit board design pcb design One-stop Service manufacturer

PCB Techinecal Capacity

Layers
Mass production: 2~58 layers / Pilot run: 64 layers
Max. Thickness
Mass production: 394mil (10mm) / Pilot run: 17.5mm
Material
FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT, PPO, PPE, Hybrid, Partial hybrid, etc.
Min. Width/Spacing
Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
Max. Copper Thickness
UL certificated: 6.0 OZ / Pilot run: 12OZ
Min. Hole Size
Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)
Max. Panel Size
1150mm × 560mm
Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
Aspect Ratio
18:1
Surface Finish
UL certificated: 6.0 OZ / Pilot run: 12OZ
Special Process
Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control.

PCBA technical Capacity

SMT
Position accuracy:20 um
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height:25mm
Max. PCB size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Wave-Solder
Max. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Sweat-Solder
Metal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
 Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than20%
 Press-fit
Press range:0-50KN
Max. PCB size:800X600mm
 Testing
ICT,Probe flying,burn-in,function test,temperature cycling
