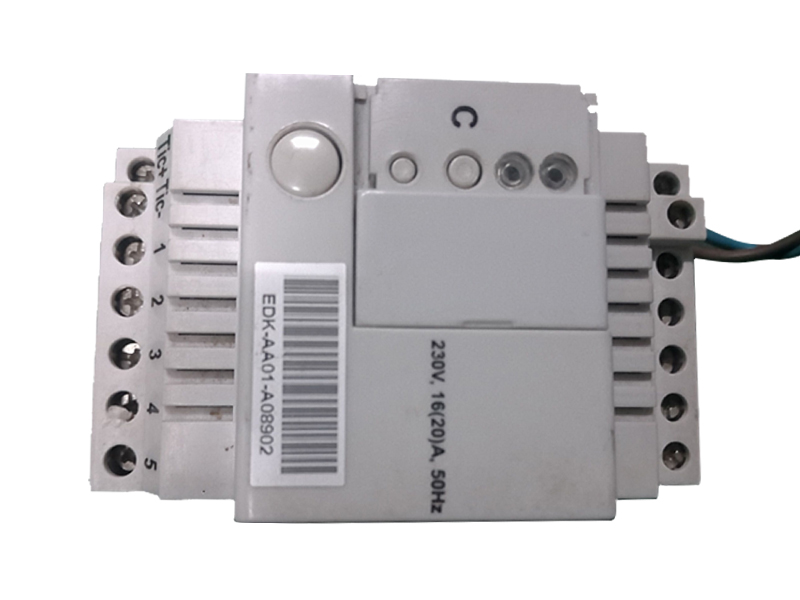

Voltalis echelon pcbA voltalis relays

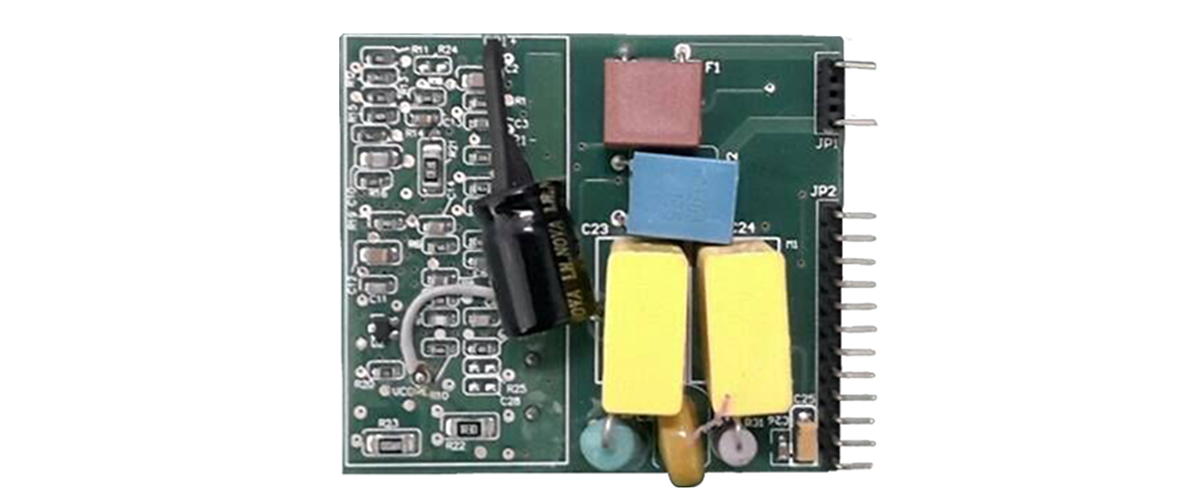

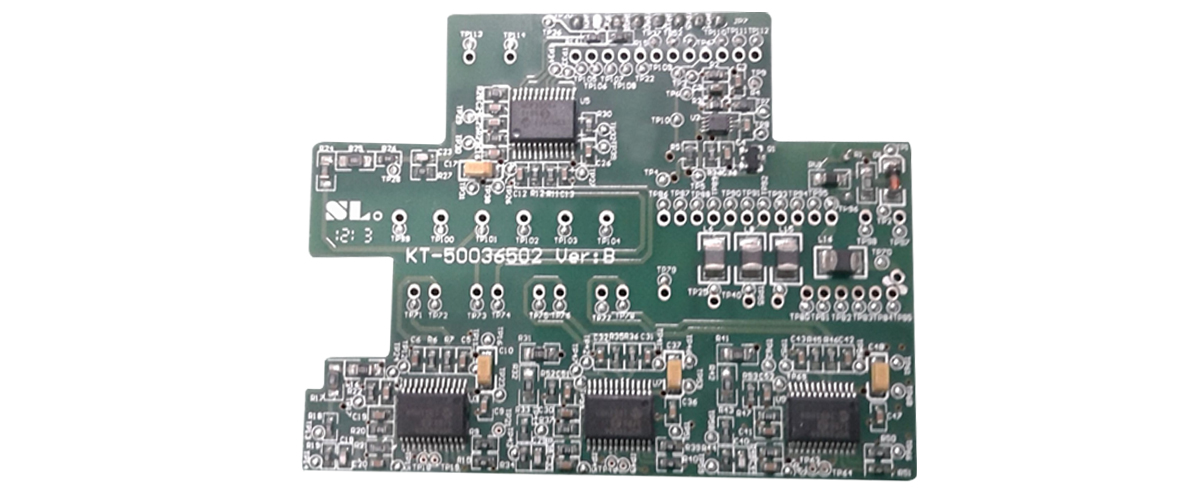

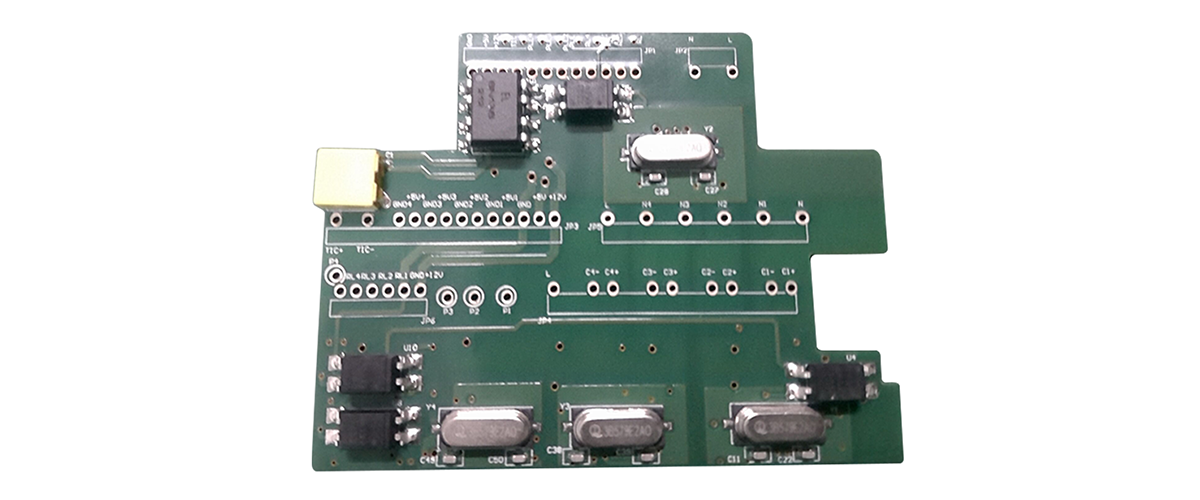

Voltalis echelon pcbA voltalis relays are designed to control current in a circuit. They are typically used for switching on and off electrical appliances, such as lights, motors, etc. The relays are connected to a printed circuit board (PCB) and are used to control the current flow. The PCB has several components, such as resistors, capacitors, transistors, diodes, and other electronic parts. The voltalis relay is connected to the PCB via a set of pins that are connected to the different components of the circuit relay is then used to control the current flow by switching the pins open or closed.
● AC 230V input and load 16A/230V *4LINE
● Each channel adopted with manganin alloy sensor detect the loop road current
● Energy metering standard #IEC 62053 is complied
● Each channel adopted measurement chip such as Microchip MCP3905 to measure AC Current / Voltage / Power energy
● Combines an ISO/IEC 14908-3 ANSI709.2-compliant power line transceiver with an ISO/IEC 14908-1 Neuron 3120 processor core adopted as USA ECHELON PL 3120
● User would be controlled device and turn on or turn off each channel by power line
● Power station administrator would be read all of data and control all of user by computer easily
1. Easy to install and use: The power line transceiver device is designed to be easy to install and use. It can be quickly connected to the power line and configured with the help of the included software.
2. Reliable: The power line transceiver device is built with high-quality components, making it highly reliable and suitable for use in harsh environments.
3. Interoperable: The device is interoperable with other devices on the power line, allowing for easy integration and communication.
4. Cost-effective: The device is cost-effective as it requires minimal maintenance and can be used for a long time.
5. Secure: The device is secure, as it has a secure encryption algorithm and a secure authentication system.
1. France EDF power station
2. local power station
3. Smart power meter alternative
