Plumbing blanket digital intelligent control board

Plumbing blanket digital intelligent control board

1. Input voltage: ac 176-264v; 50hz;

2 . Maximum output power: heating element <50 0w; water pump <100w;

3. Four buttons: switch machine, time switch, plus key, minus key;

4. Four LED indications: power supply, heating, water shortage, timing;

5. With remote control function (optional);

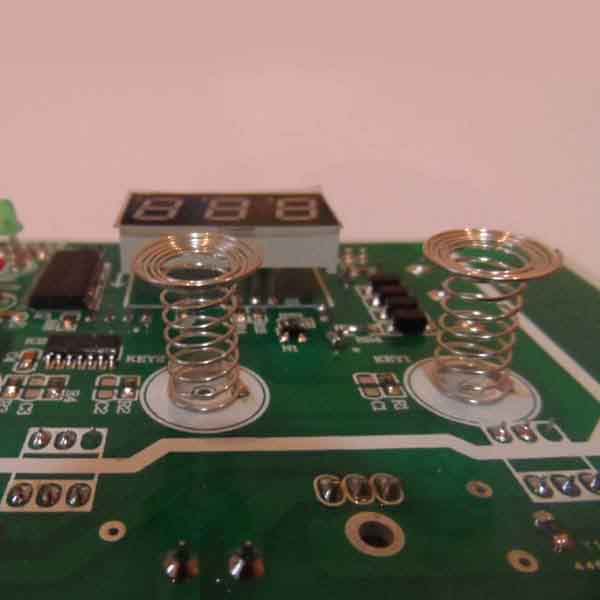

6. The board adopts plug spring and xh2.54 standard terminal, which is convenient and reliable to install;

7. Adopt American imported chips, with super anti-interference performance;

8 . Use electronic soft switch to control heating, without the noise of frequent switching of relays;

9 . Because this equipment is water heating, the board surface has been specially treated, which increases the safety and stability of the product, and can work normally in a humid environment;

10. Error prompt: (there are the following three errors, heating and water pump are not working) e0: indicates lack of water; the buzzer sounds three times and the lack of water LED flashes; e1: indicates the temperature sensor is open; the buzzer sounds three times ; E2: Indicates that the temperature sensor is short-circuited; the buzzer beeps three times; The processing and customization of this product is Yes, the brand is ZB, the model is ZB-L098, the type is DLP light display (module), the shape of the light source is planar, the light source The type is LED light-emitting diode, the light source distribution position is direct type, and the display mode is reflective type
